Reference — Examples

Note

Every example flow shipped under nodes/pumpingStation/examples/, plus how to load them, what they show, and the debug recipes that go with them. Live source: nodes/pumpingStation/examples/.

---

Shipped examples

File	Tier	What it shows
examples/01-Basic.json	1	Single pumpingStation driven by inject nodes — no parent, no dashboard. Numbered driver groups for Mode / Flow signals / Operator demand / Calibration.
examples/02-Dashboard.json	2	Same command surface as Basic, driven by a FlowFuse Dashboard 2.0 page (Controls + live Status rows + 4 trend charts + raw-output table).

---

Loading a flow

Via the editor

1. Open the Node-RED editor at http://localhost:1880.
2. Menu → Import.
3. Drag-and-drop the JSON file, or paste its contents.
4. Click Deploy.

Via the Admin API

curl -X POST -H 'Content-Type: application/json' \
  --data @nodes/pumpingStation/examples/01-Basic.json \
  http://localhost:1880/flow

---

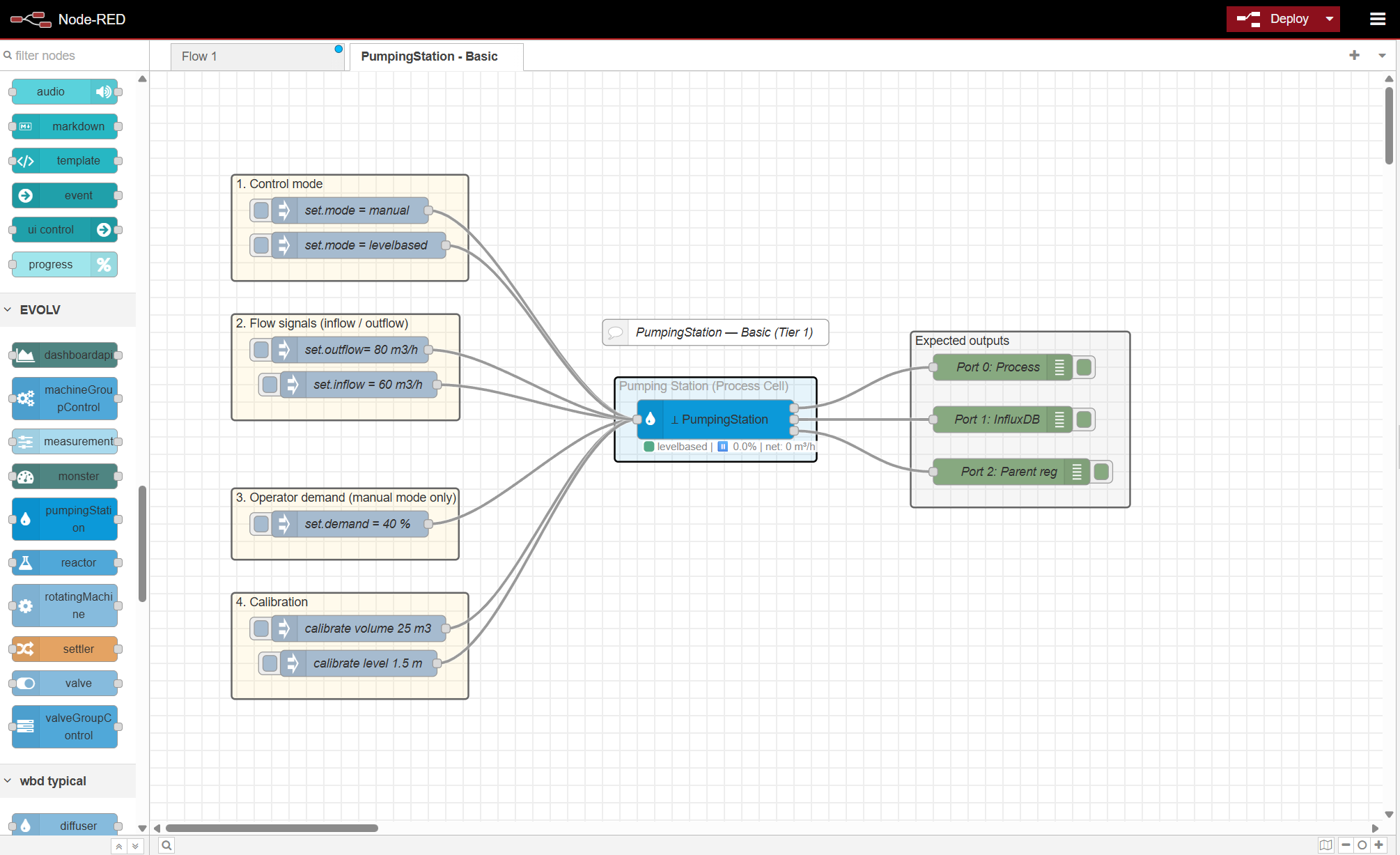

Example 01 — Basic standalone

Nodes on the tab

Type	Purpose
comment	Tab header / instructions
inject × 7	Buttons to send set.mode (manual / levelbased), set.inflow, set.outflow, set.demand, cmd.calibrate.volume, cmd.calibrate.level
pumpingStation	The unit under test
debug × 3	Port 0 (process), Port 1 (InfluxDB), Port 2 (parent reg)

Driver injects are wrapped in four numbered groups: 1. Control mode, 2. Flow signals (inflow / outflow), 3. Operator demand (manual mode only), 4. Calibration. Debug nodes sit in a separate Debug outputs (sidebar) group on the right.

What to do after deploy

1. (optional) Click set.mode = manual if you want set.demand to forward; otherwise leave it on the default levelbased and the ramp drives demand from level.
2. Click set.inflow = 60 m³/h — the basin starts filling. Watch Port 0 in the debug pane: direction flips to filling, level rises, predicted volume integrates.
3. In manual mode: click set.demand = 40 — the value surfaces as manualDemand on Port 0/1 and in the node status badge.
4. Click cmd.calibrate.volume = 25 m³ (or cmd.calibrate.level = 1.5 m) to snap the predicted-volume integrator.

---

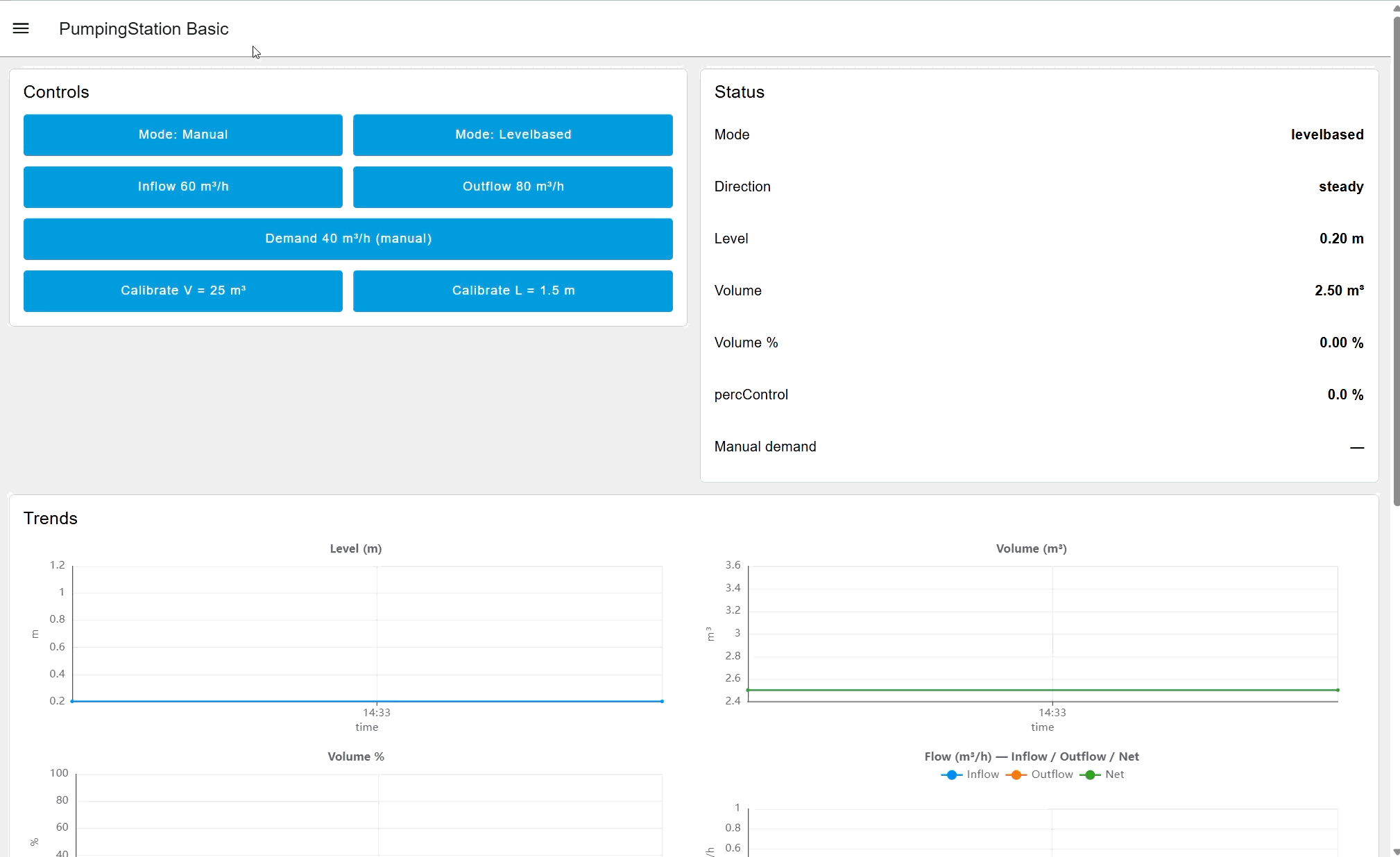

Example 02 — Dashboard

Important

Screenshot needed. Two captures from 02-Dashboard.json:

1. The editor tab (left controls column + pumpingStation + Live-status group on the right).
2. The rendered dashboard at http://localhost:1880/dashboard/pumpingstation-basic.

Save as wiki/_partial-screenshots/pumpingStation/05-ex02-editor.png and 06-ex02-dashboard.png. Replace this callout with both image links.

What it adds vs Example 01

Addition	Why
FlowFuse ui-base + ui-theme + ui-page setup	One dashboard page hosting four widget groups
ui-button × 7 (Controls group)	Replace the inject buttons one-for-one — each carries the canonical msg.topic directly
ui-text × 7 (Status group)	Live readouts: Mode, Direction, Level, Volume, Volume %, percControl, Manual demand
ui-chart × 4 (Trends group)	Level (m), Volume (m³), Volume % (0–100), Flow (m³/h, multi-series Inflow / Outflow / Net)
ui-template (Raw output group)	Full key/value table of the latest Port 0 cache — every field the node emits, sorted
Fan-out function	Caches last-known values so delta-only Port 0 updates never blank a status row, and forwards numeric values to the charts

The buttons fire the same canonical msg.topic as the inject nodes in Example 01 — there is no separate dashboard command surface to learn.

Required: @flowfuse/node-red-dashboard (Dashboard 2.0) installed in the Node-RED instance.

What to do after deploy

1. Open http://localhost:1880/dashboard/pumpingstation-basic.
2. Click Mode: Manual or Mode: Levelbased.
3. Click Inflow 60 m³/h — Status panel level / volume / vol% rise; the Level / Volume / Flow charts plot the trends.
4. In manual mode click Demand 40 m³/h — Manual demand row updates, node badge appends Qd=40 m³/h.
5. Inspect the Raw output table at the bottom of the page for the full Port 0 surface (basin geometry, dryRunLevel, highVolumeSafetyLevel, predictedOverflowVolume, …).

Important

GIF needed. Capture clicking through Mode → Inflow → Demand and the charts reacting. 20–30 s is enough.

Save as wiki/_partial-gifs/pumpingStation/02-ex02-dashboard.gif. Replace this callout with the image link.

---

Docker compose snippet

To bring up Node-RED + InfluxDB with EVOLV nodes pre-loaded:

# docker-compose.yml (extract)
services:
  nodered:
    build: ./docker/nodered
    ports: ['1880:1880']
    volumes:
      - ./docker/nodered/data:/data/evolv
  influxdb:
    image: influxdb:2.7
    ports: ['8086:8086']

Full file: EVOLV/docker-compose.yml.

---

Debug recipes

Symptom	First thing to check
Status badge stuck on no data	Did the level measurement child register? Tap Port 2 of the measurement with a debug node and confirm a child.register msg fires once at init.
Level rises but volume stays at minVol	Volume integrator hasn't been calibrated. Send cmd.calibrate.level = <real level> once.
Demand stays at 0 % even though level is high	Mode might be manual — check set.mode. Or the safety layer is blocking (look at safety.blocked on Port 0).
Predicted volume drifts	Net-flow source is wrong. Look at flowSource on Port 0; it should match the highest-level aggregator you have wired in.
enableLog: 'debug' floods the container log	Toggle it off in the node's config. Never ship a demo with debug logging enabled.

---
